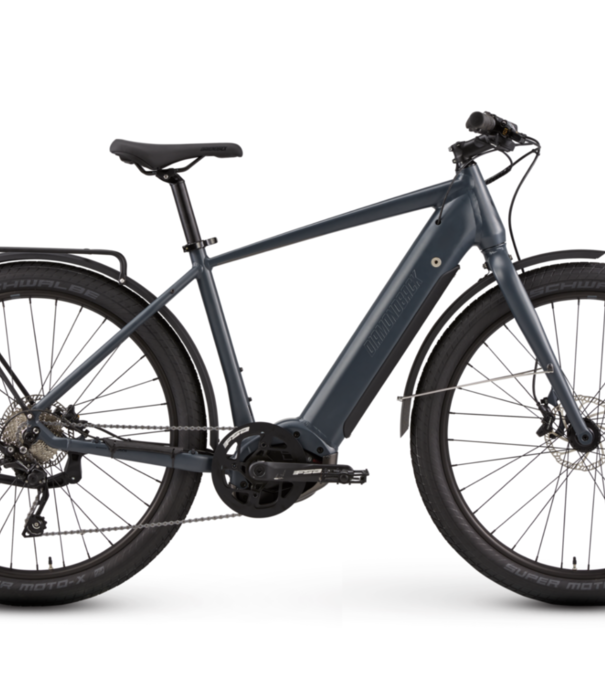

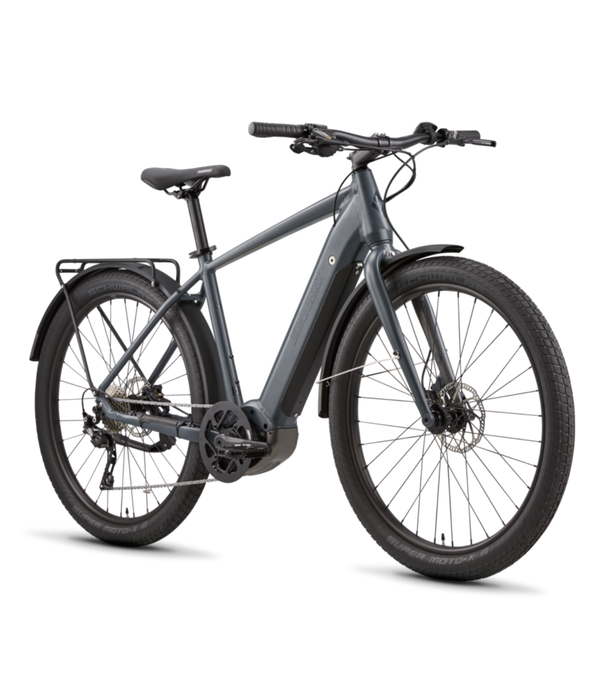

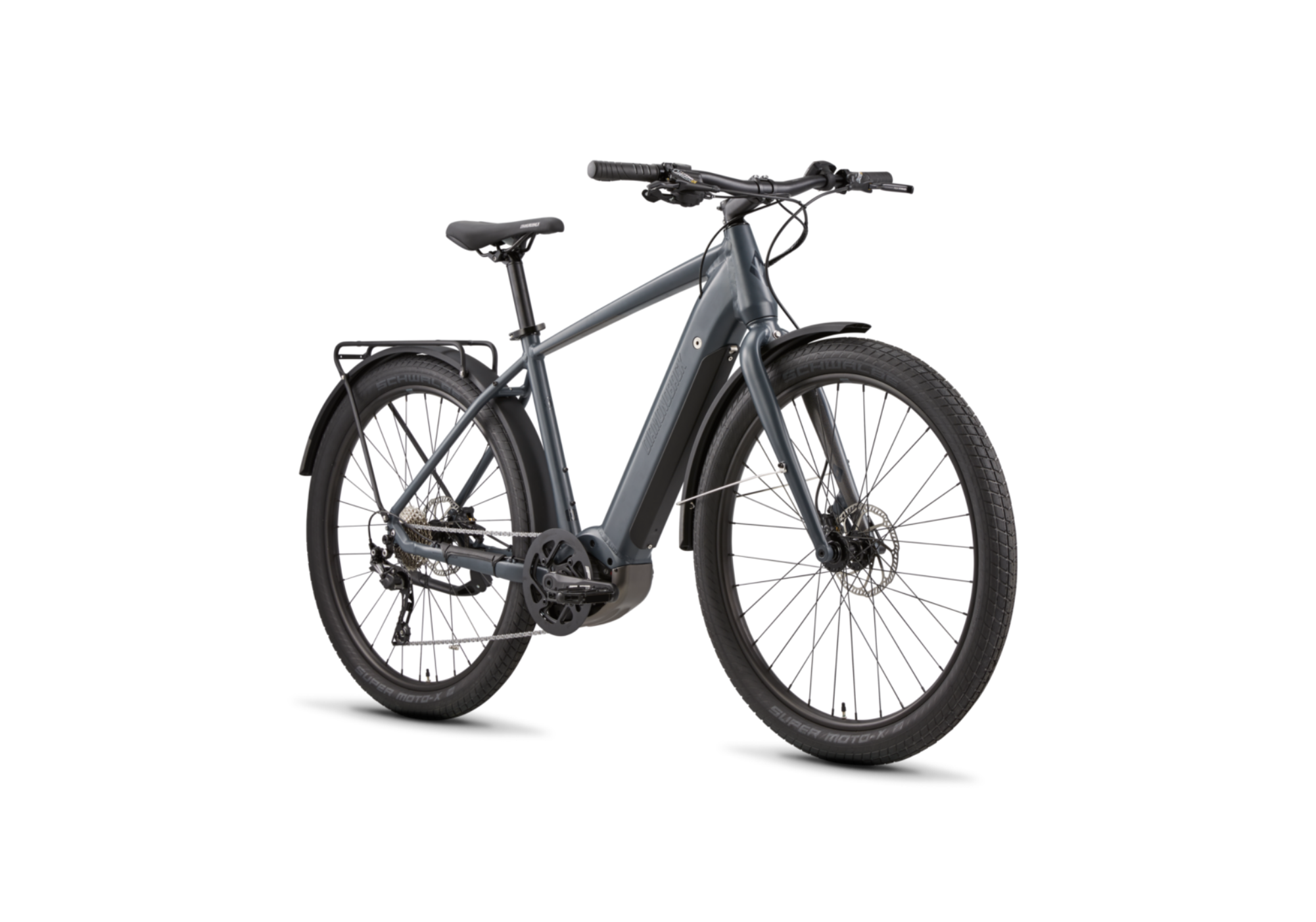

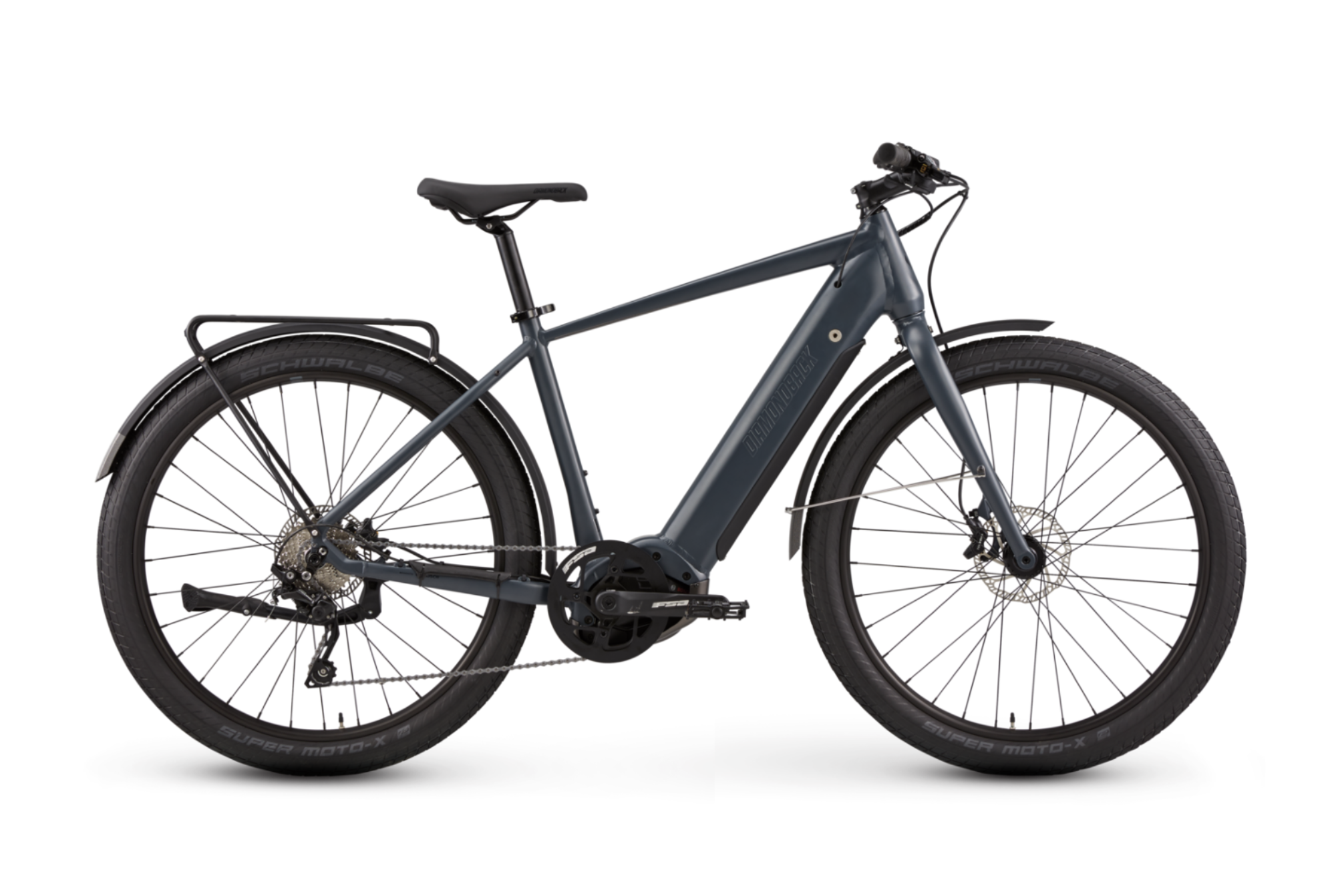

Diamondback Union 1

$3,500.00 $2,595.00 Excl. tax

The Class 3 Union 1. Aluminum frame with internal cable routing, Bosch Performance Line Speed motor and 400Wh battery. The Bosch Purion A 10-speed Shimano drivetrain,Tektro hydraulic disc brakes. 27.5-inch wheels. Integrated rack, and fenders, the Union 1

The rating of this product is 0 out of 5

 (0)
Out of stock
Add to wish list Add to wish list
  • FRAMEFormed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
  • REAR SHOCK*
  • FORKFormed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
  • HEADSETIntegrated, Sealed Bearing
  • CRANKSFSA Forged Aluminum for Bosch System
  • SPROCKETFSA Forged Spider, 42 tooth w/chainguard, steel
  • BOTTOM BRACKET*
  • FRONT DERAILLEUR*
  • REAR DERAILLEURShimano Deore M610, SGS
  • SHIFTERShimano Deore SL-M6000, 10 Speed
  • COGSETShimano, 11-32 tooth, 10 Speed
  • CHAINKMC x10e EPT, Ebike Specific
  • FRONT HUBFormula, Sealed Bearing, Thru Axle
  • REAR HUBFormula, Sealed Bearing, Thru Axle
  • SPOKESBlack w/Silver Nipples
  • RIMSAluminum 27.5", Black Annodized, 25mm ID, Disc Specific, 32 Hole
  • TIRES27.5" x 2.4" Schwalbe Super Moto
  • BRAKE LEVERSTektro M735, 2 Finger Lever
  • PEDALSShoe Friendly Urban Design, Resin Body
  • HANDLEBARAluminum Alloy 3D Forged
  • GRIPSErgo Comfort Control
  • STEMAluminum Alloy 3D Forged
  • SEATCustom Ergo Performance
  • SEATPOSTAluminum Forged Head, 350mm
  • DETANGLER*
  • EXTRASAluminum Structural Extrusion Fenders, with Integrated Rear Rack, Rear Mounted Kickstand
  • TAPE*
  • BATTERYBosch PowerTube 400
  • CHARGERBosch 4A
  • MOTORBosch Performance Line Speed, 85Nm Torque, 28mph
  • DISPLAYBosch Purion
  • RANGE ESTIMATED35mi/56km to 55mi/89km
  • BRAKESTektro M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor
  • PRODUCT ID4664
